Product Details
＋

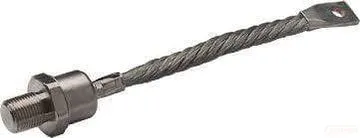

International Rectifier 300UR120D M20, Rectifier Diode, 300 Amp, 1200V M20, Anode to stud
Features
- Full blocking capability over wide temperature range
- Hermetic metal case with glass insulator
- Threaded stud
Applications
- Power Supplies
- Uncontrolled Rectifiers
- Oil Cooled Circuits
- Battery Chargers
Specification
| International Rectifier Part Number | 300UR120D M20 |
| Vrrm | 1200V |
| Diode Configuration | Cathode Stud |
| IF(av) @ 100 Deg C | 400 Amp |
| IF(av) @ 150 Deg C | 300 Amp |
| Itsm | 6.55 kA |
| VF(to) | 0.61V |
| Tj(max) | 200°C |
| rF | 0.751mΩ |
| Termination Style (Tail) | 8.3mm Round Lug |
| Termination Style (Stud) | M20 x 1.5P |
| Tail Length to Stud | 149mm |
| R th(j-c) | 0.18°C/W |
| R th(c-h) | 0.08°C/W |
| Weight | 250g |
| Mounting Torque | 26 Nm |
| Factory Pack Qty | 8 |
